EmailAerial SNE Cable is used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Aerial SNE Cable is also suitable for underground general use. Split concentric cable suitable forpower distribution as an underground or overhead cable.
Benefits:
Small overall diameter - concentric construction
Lower mass - due to smaller diameter - no steel wire armor
Increased safety - reliable earthing
Improved reliability - UV stable sheath and core insulation
Tamper and vandal proof - unauthorized access to phase conductor inhibited by concentric layer
Easy strip with nylon ripcord
Standard:
SANS 1507-6---Electrical cables with extruded solid dielectric insulation for fixed installation (300/500V to 1.9/3.3kV) Part 4: XLPE distribution cables
Construction:

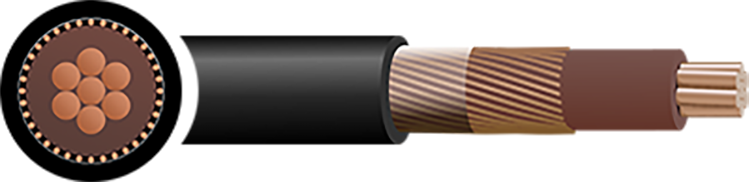

Stranded hard drawn copper phase conductor, XLPE insulated with bare/neutral earth conductors. Polyethylene sheathed house service cable. Nylon ripcord laid under sheath.
Data Sheet
| Size | Phase Conductor | XLPE Insulation | Earth Conductor | PE Sheath | Approx. Weight | ||||
| Structure | O.D. | Thickness | O.D. | Structure | O.D. | Thickness | O.D. | ||
| mm² | No./mm | mm | mm | mm | No./mm | mm | mm | mm | kg/km |
| 4 | 7/0.92 | 2.76 | 1.0 | 5.97 | 8/0.85 | 6.46 | 1.4 | 9.41 | 131 |
| 10 | 7/1.35 | 4.05 | 1.0 | 5.22 | 18/0.85 | 7.75 | 1.4 | 10.70 | 240 |
