Send An EmailTree Wire is overhead insulated cable, used for primary and secondary overhead distribution with limited space or rights-of-way, such as alleyways or tight-corridors. It can be installed the same as bare overhead conductors. It’s effective in avoiding direct shorts and instantaneous flash overs with other objects.
Tree Wire

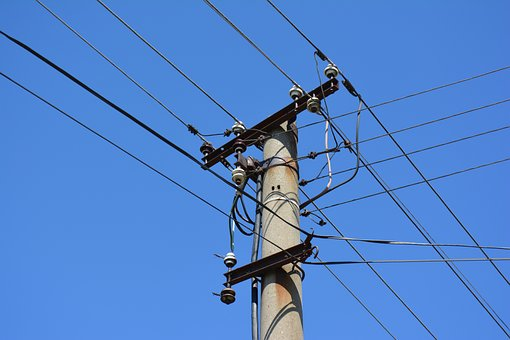

when used in a tree wire power system, it is installed in a flat configuration, in a similar manner and spacing on insulators as with bare or covered overhead conductors. Self-supporting conductors, such as ACSR, are typical in this type of installation.
Spacer Cable

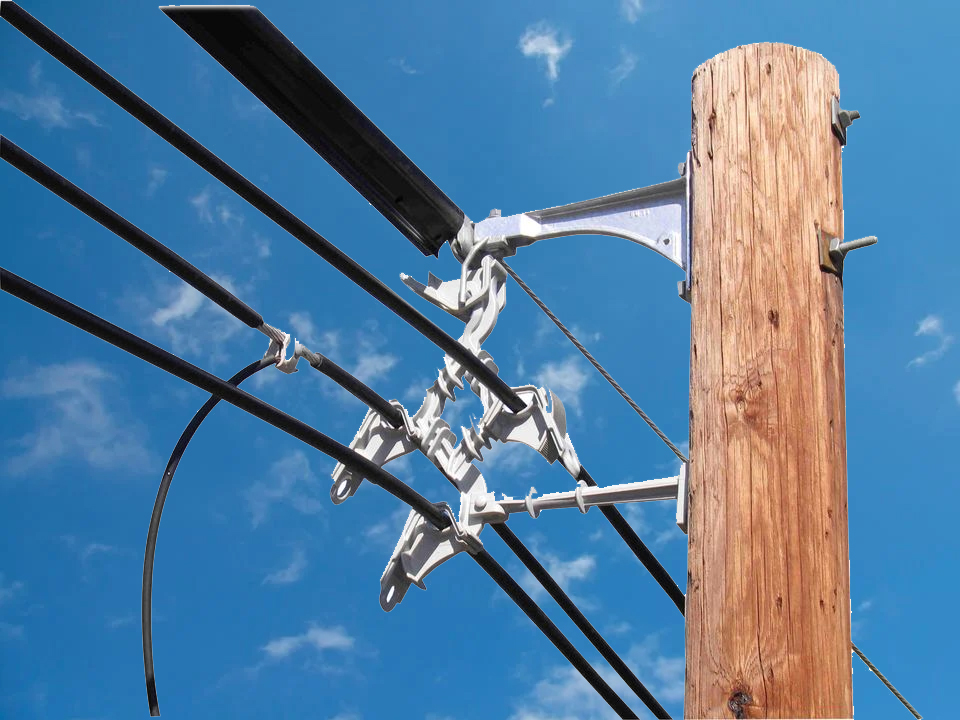

when used in a spacer cable power system, it is installed with a uniform spacing in a diamond configuration maintained by spacer hardware. The spacer and cable assembly are supported by a bare messenger, such as bare aluminum clad steel, ACSR, OPGW, or galvanized steel wire. Spacer cable assemblies occupy minimal space, requiring the narrowest of right of way or corridor.
Standard:
ICEA S-121-733---TREE WIRE AND MESSENGER SUPPORTED SPACER CABLE
Voltage:
15Kv 25kV 35kV

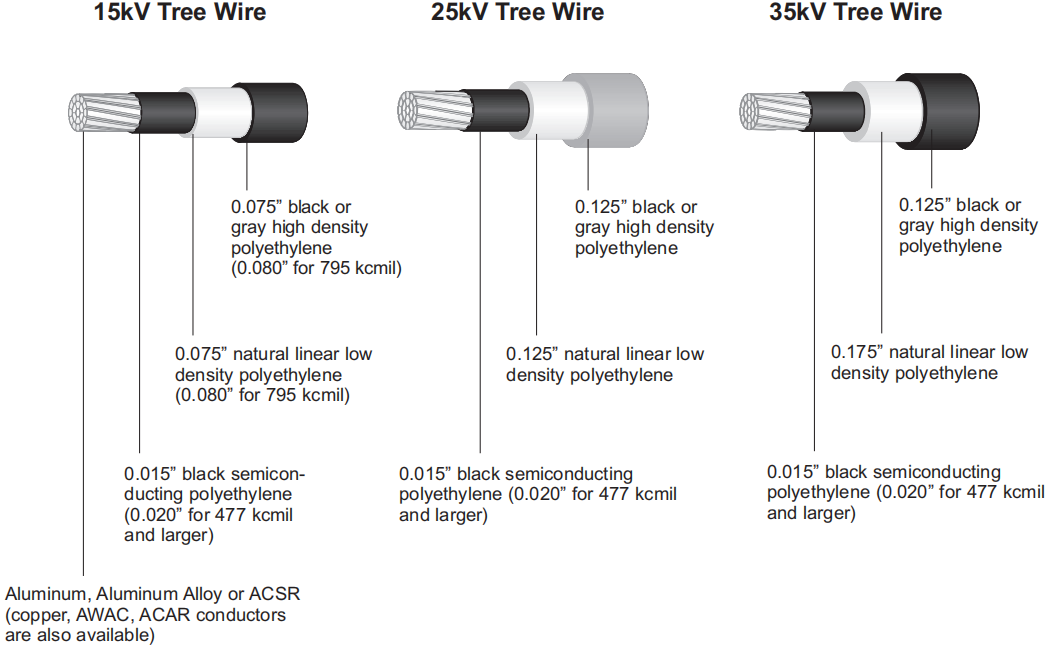

Construction:
Conductor: circular, concentrically stranded conductors, round compacted or non-compacted AAAC, AAC; ACSR.
Conductor Screen: semi-conductive layer (XLPE-SC)
Insulation：LDTRPE (Low Density Track-resistant Cross-linked Polyethylene)
Outer Sheath：High-density track-resistant Polyethylene (HDTRPE)
Why Choose Us?
We produce quality cables by using high-end material:
Rich experience team knowing what's your demand:
Plant with good facilities and capacity to guarantee on-time delivery:
3-Layer 15kV AAC Tree Wire
| Cond. Size | Cond. Strands | Diameter Over Conductor | Conductor Shield Thickness | Inner Layer Thickness | Outer Layer Thickness | Approx. O.D. | Approx. Weight | Rated Strength |
| AWG/ KCMIL | # | inch | mil | mil | mil | inch | lb/1000ft | lb |
| 1/0 | 7 | 0.336 | 15 | 75 | 75 | 0.666 | 210 | 1791 |
| 2/0 | 7 | 0.376 | 15 | 75 | 75 | 0.706 | 246 | 2259 |
| 3/0 | 7 | 0.423 | 15 | 75 | 75 | 0.753 | 289 | 2736 |
| 4/0 | 7 | 0.475 | 15 | 75 | 75 | 0.805 | 343 | 3447 |
| 266.8 | 19 | 0.537 | 15 | 75 | 75 | 0.867 | 407 | 4473 |
| 336.4 | 19 | 0.603 | 15 | 75 | 75 | 0.933 | 487 | 5535 |
| 397.5 | 19 | 0.659 | 15 | 75 | 75 | 0.989 | 558 | 6399 |
| 477 | 19 | 0.722 | 15 | 75 | 75 | 1.052 | 648 | 7524 |
| 556.5 | 37 | 0.78 | 20 | 75 | 75 | 1.12 | 742 | 8946 |
| 636 | 37 | 0.835 | 20 | 80 | 80 | 1.195 | 846 | 10260 |
| 795 | 19 | 0.932 | 20 | 80 | 80 | 1.292 | 1020 | 12510 |
3-Layer 25kV AAC Tree Wire
| Cond. Size | Cond. Strands | Diameter Over Conductor | Conductor Shield Thickness | Inner Layer Thickness | Outer Layer Thickness | Approx. O.D. | Approx. Weight | Rated Strength |
| AWG/ KCMIL | # | inch | mil | mil | mil | inch | lb/1000ft | lb |
| 1/0 | 7 | 0.336 | 15 | 125 | 125 | 0.866 | 309 | 1791 |
| 2/0 | 7 | 0.376 | 15 | 125 | 125 | 0.906 | 350 | 2259 |
| 3/0 | 7 | 0.423 | 15 | 125 | 125 | 0.953 | 400 | 2736 |
| 4/0 | 7 | 0.475 | 15 | 125 | 125 | 1.005 | 460 | 3447 |
| 266.8 | 19 | 0.537 | 15 | 125 | 125 | 1.067 | 531 | 4473 |
| 336.4 | 19 | 0.603 | 15 | 125 | 125 | 1.133 | 621 | 5535 |
| 397.5 | 19 | 0.659 | 15 | 125 | 125 | 1.189 | 698 | 6399 |
| 477 | 19 | 0.722 | 20 | 125 | 125 | 1.262 | 806 | 7524 |
| 556.5 | 37 | 0.78 | 20 | 125 | 125 | 1.32 | 899 | 8946 |
| 636 | 37 | 0.835 | 20 | 125 | 125 | 1.375 | 995 | 10260 |
| 795 | 37 | 0.932 | 20 | 125 | 125 | 1.472 | 1181 | 12510 |
