Send An EmailThe aerial bundled cables are designed for overhead distribution lines have an insulated neutral messenger made of AAAC, with the insulated aluminum phase conductors helically wounded over it. Can be used for fixed installation as overhead power lines up to 1000V. Compared to traditional bare conductors, AAC conductors feature an insulating layer that reduces the risk of electric shock, offering enhanced safety. The bundled structure provides a safer, more efficient, and better-organised system for overhead lines. It is also commonly used for temporary wiring on construction sites, street lighting, and outdoor illumination.
Standard:
IEC 60502-1 This standard specifies that the maximum voltage for extruded insulated power cables shall be 1 kV (Um = 1.2 kV) or 3 kV (Um = 3.6 kV).
Characteristics :
Voltage Rating: 0.6/1kV
Test Voltage: 4kV
Operating Temperature: -40°C to +90°C
Minimum Bending Radius: 18 x overall diameter
Application :
Phase Conductor: Aluminum conductor , round stranded compressed or uncompressed.
Neutral or Messenger Conductor: Alloy aluminum conductor round stranded compressed.
Street Lighting Conductor: Aluminum conductor, round stranded compressed.
Insulation: XLPE, HDPE, LDPE or PVC.

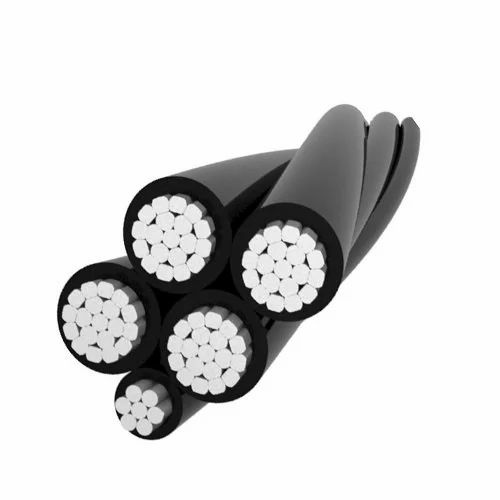

Assembly: The cable consists of insulated phase and street lighting aluminum conductors, shall be held firmly onto the insulated neutral messenger aluminum alloy conductor in a right hand (Z) lay.
Why Choose Us?
We produce quality cables by using high-end material:
Rich experience team knowing what's your demand:
Plant with good facilities and capacity to guarantee on-time delivery:
| Number of Cores x Nominal Cross Section | Min. Breaking Load of Conductor Strand | Current Rating in The Air | Outer Diameter | Total Weight |
| mm² | kN | A | mm | kg/km |
| 1×16+1x 25 RM | 6.4 | 61 | 15.3 | 160 |
| 3×16+1x 25 RM | 6.4 | 61 | 19.0 | 290 |
| 3×25+1x 25 RM | 6.4 | 84 | 23.2 | 400 |
| 3×35+1x 25 RM | 6.4 | 104 | 25.6 | 500 |
| 3×50+1x 35 RM | 8.9 | 129 | 30.0 | 680 |
| 3×70+1x 50 RM | 12.1 | 167 | 34.9 | 920 |
| 3×95+1x 70 RM | 18.0 | 209 | 40.6 | 1270 |
| 3×120+1x 70 RM | 18.0 | 246 | 44.1 | 1510 |
| 3×150+1x 95 RM | 24.2 | 283 | 49.2 | 1870 |
| 3×185+1×120 RM | 30.8 | 332 | 54.9 | 2340 |
| 3×25+1×25+1×16 RM | 6.4 | 84 | 23.2 | 470 |
| 3×35+1×25+1×16 RM | 6.4 | 104 | 25.6 | 560 |
| 3×50+1×35+1×16 RM | 8.9 | 129 | 30.0 | 740 |
| 3×70+1×50+1×16 RM | 12.1 | 167 | 34.9 | 980 |
| 3×95+1×70+1×16 RM | 18.0 | 209 | 40.6 | 1330 |
| 3×120+1×70+1×16 RM | 18.0 | 246 | 44.1 | 1580 |
| 3×150+1×95+1×16 RM | 24.2 | 283 | 49.2 | 1940 |
| 3×185+1×120+1×16 RM | 30.8 | 332 | 54.9 | 2410 |
